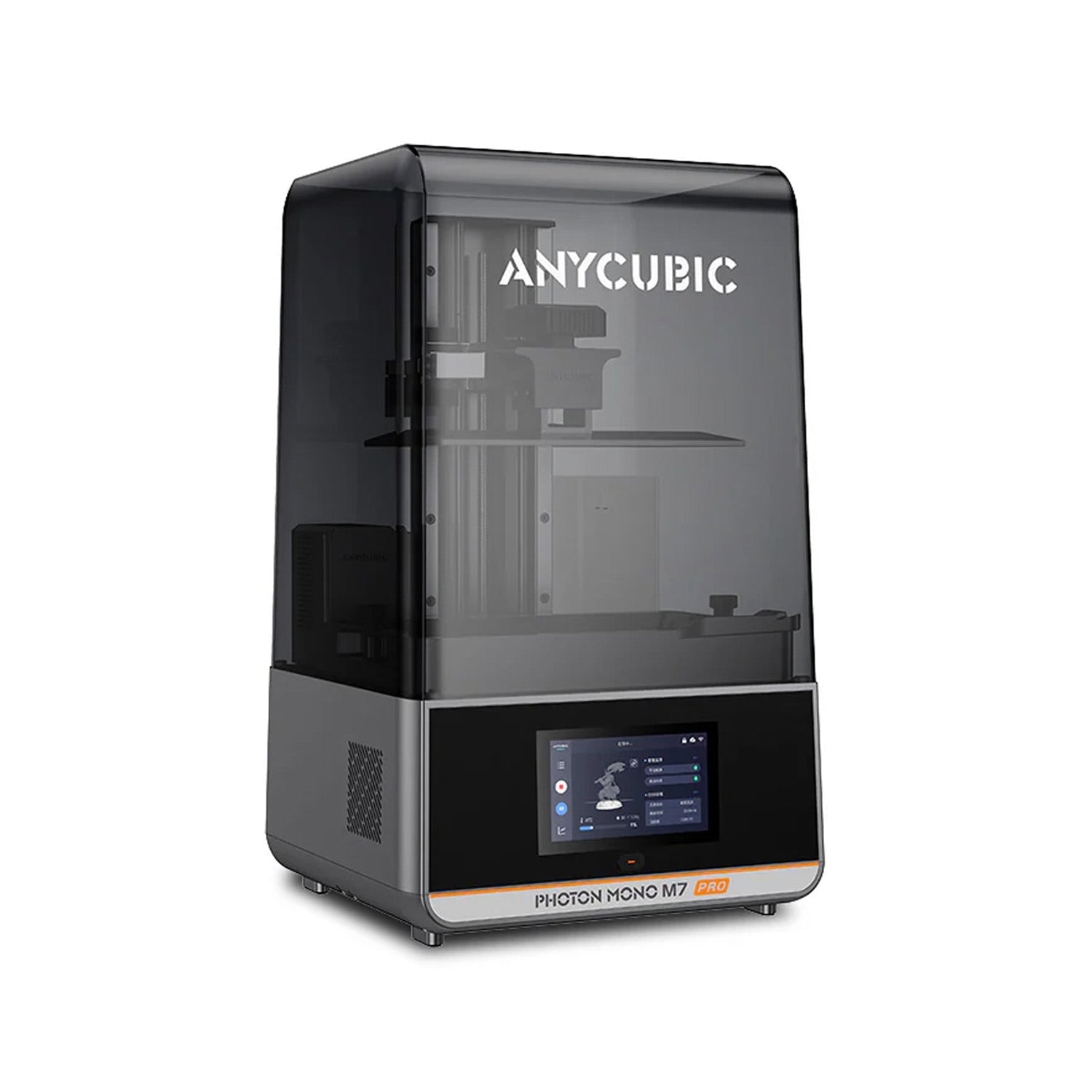

Photon Mono M7 Pro

Overview

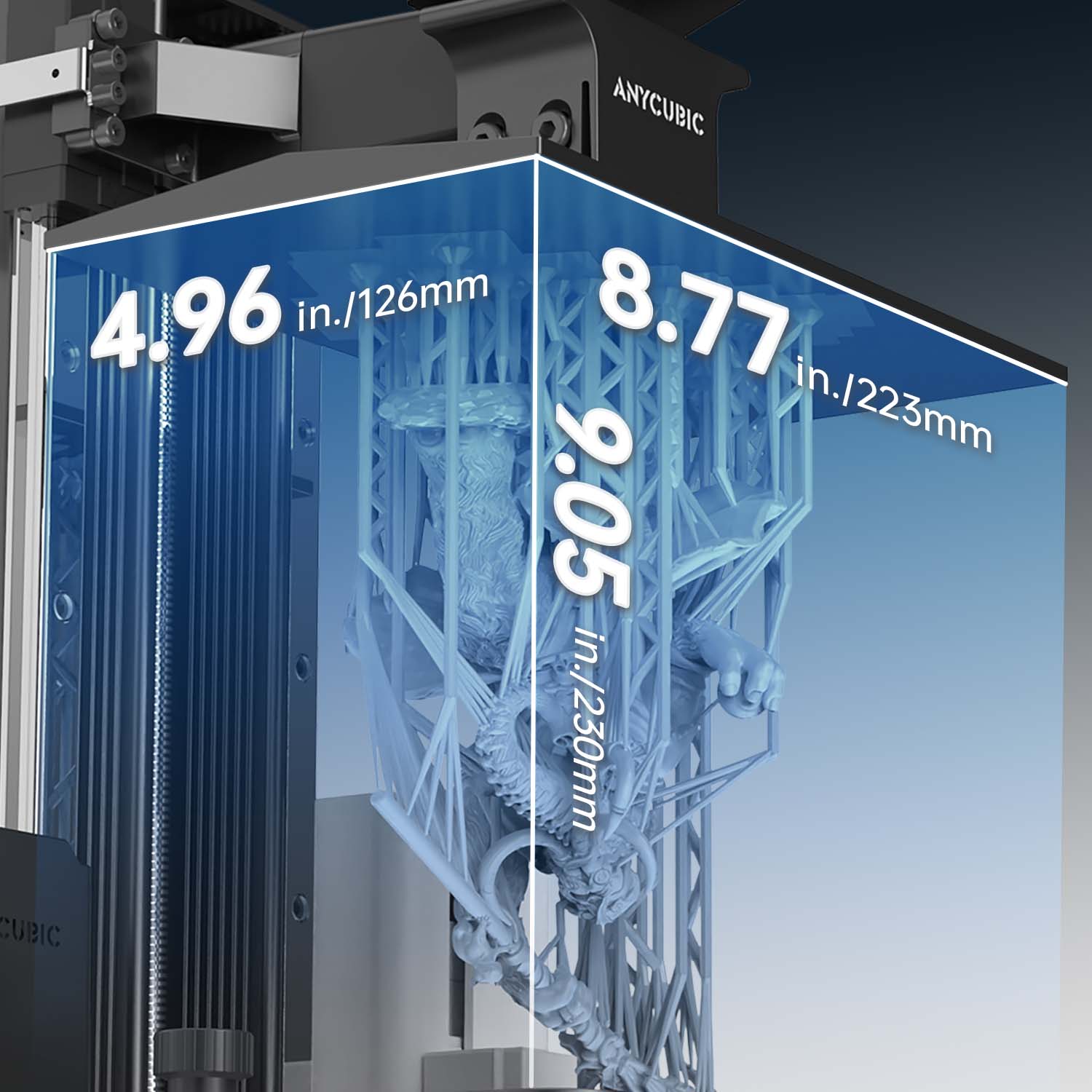

The Photon Mono M7 Pro shares the standard M7's 10.1-inch, 14K monochrome LCD (13,312 x 5,120 pixels, 16.8 x 24.8 µm XY resolution) and 223 x 126 x 230 mm (6.5-liter) build volume, with the Pro name reflecting faster print speeds and an upgraded release film rather than a different screen. Its COB-plus-Fresnel light source (LighTurbo 3.0, with light kept within a ≤3° cone) is rated higher than the base M7, at 5500 µW/cm² ±10%. Anycubic lists standard-resin speeds up to around 130 mm/h and high-speed resin up to around 170 mm/h at 0.1mm layers, both faster than the standard M7, though some regional listings show lower figures, so treat exact numbers as approximate. The Z-axis uses the same dual-linear-rail, 10 µm precision mechanism. It uses an improved ACF release film that Anycubic says lasts longer than earlier film versions, and the printer is leveling-free. Connectivity covers USB, Wi-Fi, and LAN with Anycubic App support, and the box includes a Wi-Fi antenna. One notable caveat is that Anycubic's own listing states the M7 Pro does not support power-loss print resume, so a mid-print power cut means restarting the job. There's no built-in camera. It suits users who want the M7 platform's resolution with less time per print than the standard M7 or M7 Max.
